FCW系列饋通可將液體輸送到特高壓系統中。雖然它們能夠在低溫下運行，但它們是為室溫或室溫以上的液體和氣體使用而設計的。標準FCW饋通配有外徑1.33英寸或外徑2.75英寸的安裝法蘭。單管或雙管有1/4“外徑或3/8”外徑，帶世偉洛克™接頭。
FLN Series

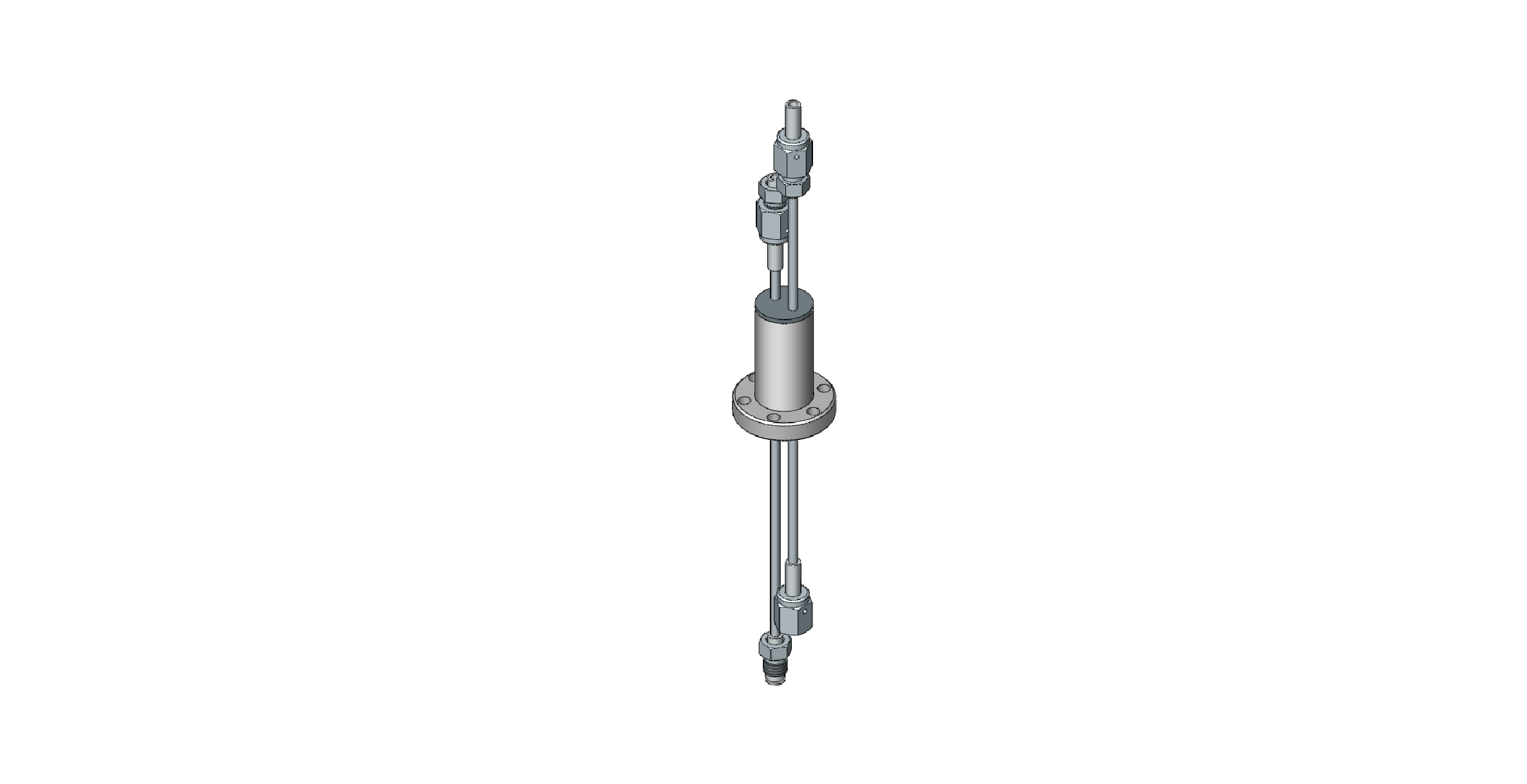

The FLN series feedthroughs provide for cryogenic and heated liquid transfer into UHV systems. All incorporate a thermal barrier design.
| Model | Flange?OD | Number of Tubes | Tube OD |
|---|---|---|---|
| FLN-133-1 | 1.33″ OD | 1 | 1/4″ |
| FLN-133-2 | 1.33″ OD | 2 | 1/8″ |
| FLN-275-1 | 2.75″ OD | 1 | 3/8″ |
| FLN-275-2 | 2.75″ OD | 2 | 3/8″ |
