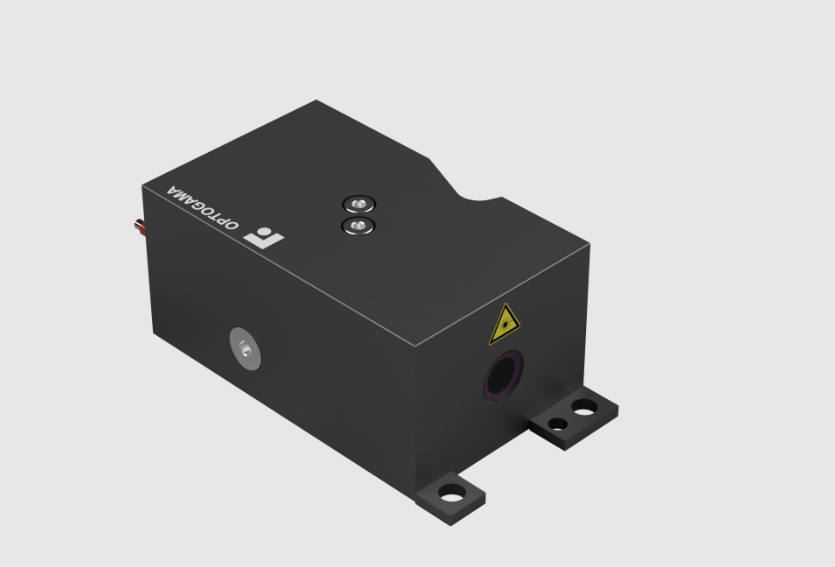

OPTOGAMA: “Eye-safe” 1,5 μm lasers “KAUKAS CW” 激光器
“KAUKAS CW” 系列二極管泵浦固態激光型號，可在多個 1.5 微米波長下提供高達 400 毫瓦的連續波功率。這些基于摻鉺增益介質的經濟實惠型主動風冷激光器，集高性能、超長使用壽命和卓越可靠性于一身?！癒AUKAS CW”?“eye-safe”? 激光器可提供衍射極限的 TEM00 輸出光束、出色的功率穩定性和窄帶光譜。
技術參數：
| Wavelength | 1,5 μm |
| Wavelength tolerance | ±1 nm |
| Laser operating mode | CW |
| Average output power | Up to 500 mW |
| Power stability | <2 % |
| Polarization contrast | >100:1 |
| Beam diameter at exit window | <1 mm |
| Beam divergence | <5 mRad |
| Beam quality | M2?< 2 |
| Beam profile | TEM00 |
| Laser module dimensions | 175 x 78 x 86 mm (L x W x H) |
| Laser driver dimensions | 164 x 105 x 44 mm (L x W x H) |
| Pump current | 5-10 A |
| Electric | 100-240 V AC, 50/60 Hz, 1,4 A |
| Working temperature | 15-25 °C |
| Cooling | TEC element + active air cooling |
